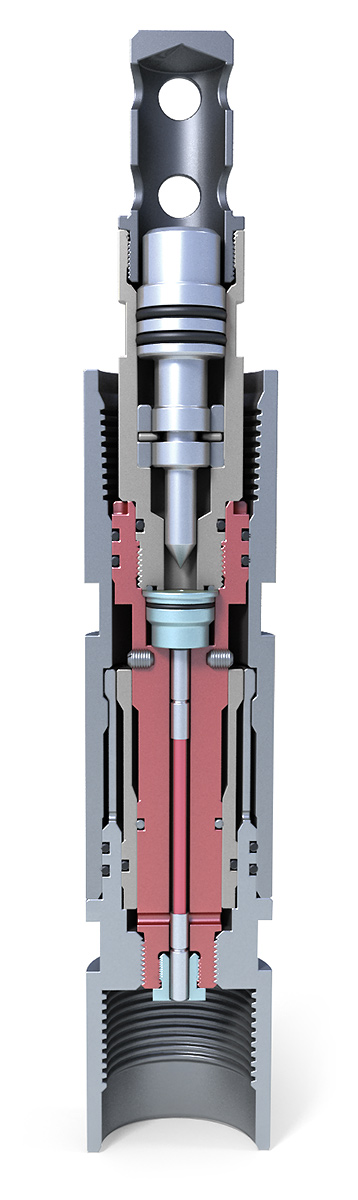

ORION-05 Auto-release Hydraulic Firing Head

ORION-05 Firing Head is used to detonate tubing conveyed perforating systems. It is activated hydraulically. Firing Head automatically releases the perforating gun assembly from the tubing.



Download catalog

Specification

Feature
Value
Mark
GS ORION-05-73
Thread size and type
Tubing 60
Gun connection
Tr60×4-LH
Applicability
PK73KL ORION
PK89KL ORION,
PK102KL ORION
Max OD, mm
73
Max hydrostatic initiation pressure, MPa, max 12 pins
54
Min hydrostatic initiation pressure, MPa, min 2 pins
9
Max allowed location time of perforator in the well, hour
No longer than 1 hour at 250 °С
No longer than 100 hour at 230 °С
Perforator operation, salvo
1
Weight, kg
7,75
Overall length, mm
429

Notes:
1) Can be elongated by changing the rubber mix of O-rings;
2) Following limit deviations are allowed:
- overall dimensions ± 2%,
- weight - ± 3%.

Item list

Item name
Mark
Quantity
Sub
VGS - GSR -001
1
Housing
VGS - GSR -002
1
Plug
VGS - GSR -003
1
Rod
VGS - GSR -004
1
End plug
VGS - GSR -005
1
Set screw
VGS - GSR -006
2
Firing pin housing
VGS - GSR -020
1
Firing pin
VGS - GSR -021
1
O-ring
VGS - GSR -022
1
End plug
VGS - GSR -023
1
Pin
VGS - GSG -007
12
O-ring
021-025-25
1
O-ring
027-033-36
4
O-ring
039-045-36
1
O-ring
046-052-36
2
O-ring
054-060-36
2
Booster
Booster ORION
2
Detonating cord
115 мм
Initiator
Percussion Initiator DYNAWELL HNS
Blasting cap Pacific Scientific-CP DET-3050-134A
1
