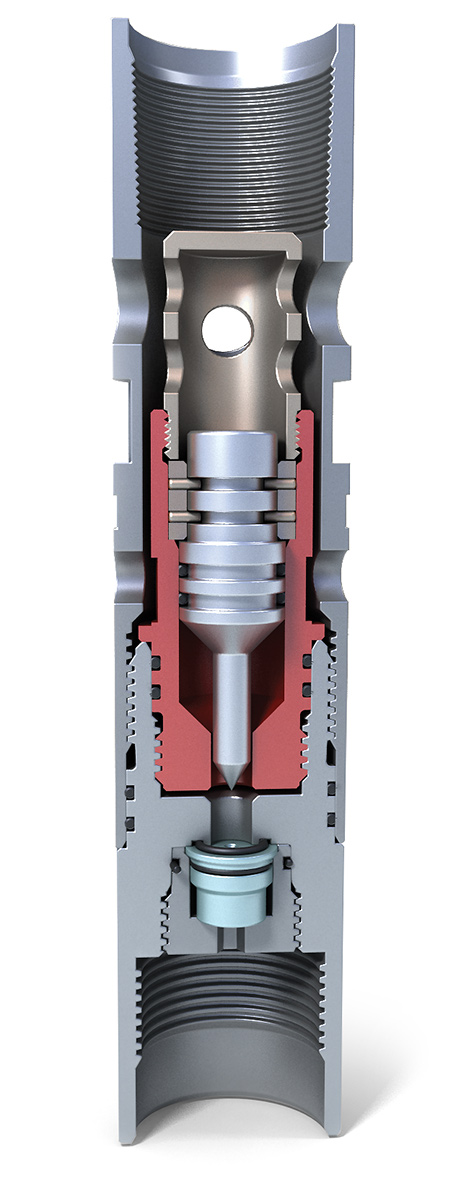

ORION-03 Circulating and Non-circulating Firing Head

ORION-03 Hydraulic Firing Head is used to initiate tubing conveyed perforating systems. It is activated by applying hydraulic or tubing pressure depending on the type of FH housing.

The non-circulating Firing Head GS ORION-03-...-00 (FH housing without circulating ports) doesn`t allow wellbore fluid to safely circulate into the tubing through tubing space.

The circulating firing head GS ORION-03-...-01 (FH housing with circulating ports) allows wellbore fluid to safely circulate into the tubing through tubing space.



Download catalog

Specifications

Feature
Non-circulating Firing Head
Circulating Firing Head
Mark
GS ORION-03-50-00
GS ORION-03-63-00
GS ORION-03-73-00
GS ORION-03-50-01
GS ORION-03-63-01
GS ORION-03-73-01
Thread size and type
Tr44х4
Tubing B-48
Tubing 60
Tr44х4
Tubing B-48
Tubing 60
Gun connection
Tr40х4
Tr52×4-LH
Tr60×4-LH
Tr40х4
Tr52×4-LH
Tr60×4-LH
Applicability
PK 50KL ORION, PK63KL ORION,
PK73KL ORION, PK89KL ORION,
PK102KL ORION
Max OD*1, mm
50
63,5
73
50
63,5
73
Max hydrostatic pressure (max 24 pins required), МPа
54
64
98
58
64
98
Min hydrostatic pressure (min 2 pins required), МPа
4
5,8
9
6
5,8
9
Max allowed time of gun location in the well, hour
No longer than 1 hour at 250 °С
No longer than 100 hours at 230 °С
Perforation operation, salvo
5
5
5
5
5
5
Weight, kg
3,5
4,7
6,9
3,2
4,6
6,9
Overall length, mm
340
323
340
375
323
340

Note:
Time is also limited by max allowed temperature of other gun components, containing explosives (detonator, booster and detonating cord) and O-ring temperature resistance;
*1 Following limit deviations are allowed:
- Overall dimensions, ± 2%;
- Weight, ± 3%.

Item list

Item name
GS ORION-03-63-00
GS ORION-03-73-00
GS ORION-03-63-01
GS ORION-03-73-01
Bottom sub
VGS - GSG -001-01
VGS - GSG -001
VGS - GSG -001-01
VGS - GSG -001
Non-circulating housing
VGS - GSG -002-02
VGS - GSG -002
VGS - GSG -002-03
VGS - GSG -002-01
Firing pin housing
VGS - GSG -003-01
VGS - GSG -003
VGS - GSG -003-01
VGS - GSG -003
Plug
VGS - GSG -004-01
VGS - GSG -004
VGS - GSG -004-01
VGS - GSG -004
Firing pin
VGS - GSG -005-01
VGS - GSG -005
VGS - GSG -005-01
VGS - GSG -005
Cup
VGS - GSG -006-01
VGS - GSG -006
VGS - GSG -006-01
VGS - GSG -006
Pin
VGS - GSG -007-01
VGS - GSG -007
VGS - GSG -007-01
VGS - GSG -007
Plug
VGS - GS -003
VGS - GS -003
VGS - GS -003
VGS - GS -003
O-ring GOST 18829-73/9833-73
021-025-25
021-025-25
021-025-25
021-025-25
O-ring GOST 18829-73/9833-73
023-028-36
027-033-36
023-028-36
027-033-36
O-ring GOST 18829-73/9833-73
034-038-25
034-038-25
034-038-25
034-038-25
O-ring GOST 18829-73/9833-73
035-041-36
044-050-36
035-041-36
044-050-36
O-ring GOST 18829-73/9833-73
050-056-36
060-066-36
050-056-36
060-066-36
Initiator
Percussion Initiator DYNAWELL HNS
Pacific Scientific-CP DET-3050-134A
Key 7812 - 0376 Х9
GOST 11737 - 93
GOST 11737 - 93
GOST 11737 - 93
GOST 11737 - 93
Redress Kit
RK GS ORION-03-63
RK GS ORION-03-73
RK GS ORION-03-63
RK GS ORION-03-73
