ORION-01 Mechanical Firing Head

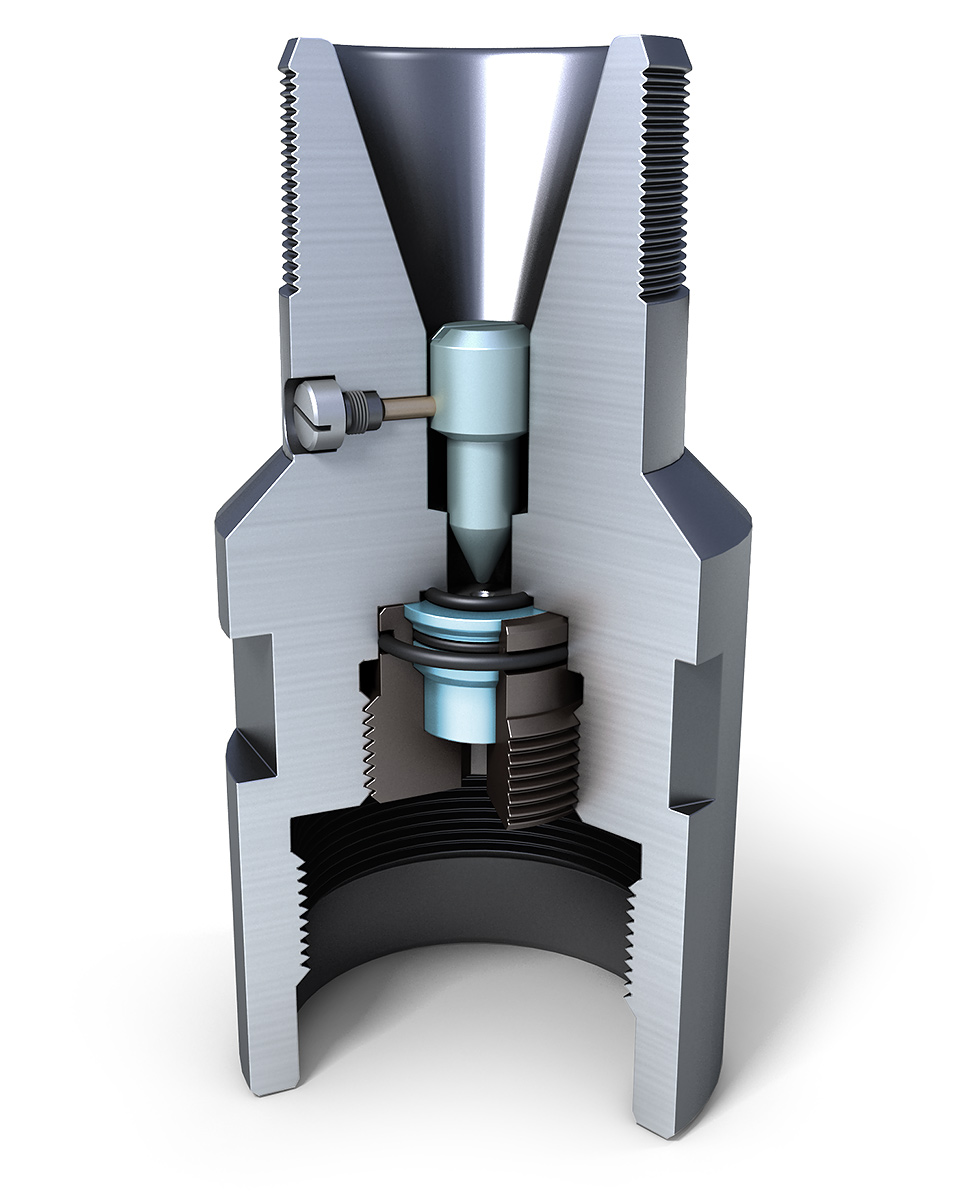

ORION-01 Mechanical Firing Head is used to activate tubing conveyed perforating systems. Firing Head is detonated by releasing a drop bar into the tubing from the surface.

NOTES: Standard Drop Bars are used for wells up to 40° deviation. Deviations from 40° to 60° require a roller assisted bar to fire.

DESIGN FEATURES AND APPLICATION:

Can be used during perforation at drawdown (packer and packer-less application);
Can be used in deviated wells with 60° deviation..



Download catalog

Specification

Feature
Value
Mark
GS ORION-01-73
GS ORION-01-89
Thread size and type
Tubing 60
Tubing 73
Gun connection
Top sub (Tr60×4-LH)
Applicability
          PK73KL ORION, PK89KL ORION, PK102KL ORION, PK114KL ORION
Max OD, mm
73
89
Max hydraulic pressure, МPа
110
Max temperature, °С
204
Perforator operation, salvo
5
Weight, kg
3,55
6
Overall length, mm
185
195

Item list

Item name
GS ORION-01-73
GS ORION-01-89
Housing
VGS - GS -001
VGS - GS -001-01
Firing Pin
VGS - GS -002
Plug
VGS - GS -003
Core
VGS - GS -004
O-ring 034-038-25
VGS - GS -005
O-ring 021-025-25
VGS - GS -007
Set Screw
VGS - GS -007
O-ring 005-008-19
GOST 18829-73/9833-73
Initiator
Percussion Initiator DYNAWELL HNS
Blasting cap Pacific Scientific-CP DET-3050-134A
Key 7812-0376Х9
GOST 11737-93
Redress Kit
RK GS ORION-01
