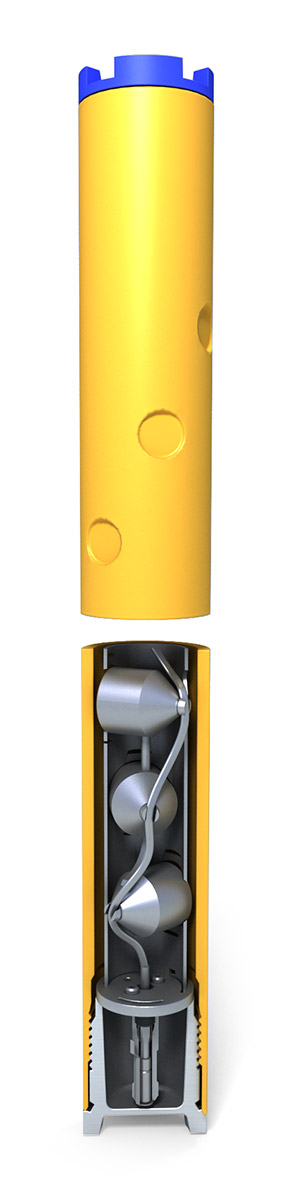

Safety spacer

Safety spacer is used for tubing-conveyed perforator safe arming. As a result firing head is set in a safe distance from the nearest perforating charge installed. Also safety spacer can be used as an interval extension during perforation of several intervals for one run.



Download catalog

Specification

Mark
Weight, kg
Overall dimensions, mm
VGS63-02.000
23
Ø63×2290
VGS63-02.000-01
32
Ø63×3290
VGS73-02.000
31,5
Ø73×2290
VGS73-02.000-01
45
Ø73×3290
VGS89-02.000
43,5
Ø89×2290
VGS89-02.000-01
62,4
Ø89×3290
VGS102-02.000
52
Ø102×2290
VGS102-02.000-01
71
Ø102×3290
VGS114-02.000
62
Ø114×2290
VGS114-02.000-01
87
Ø114×3290
